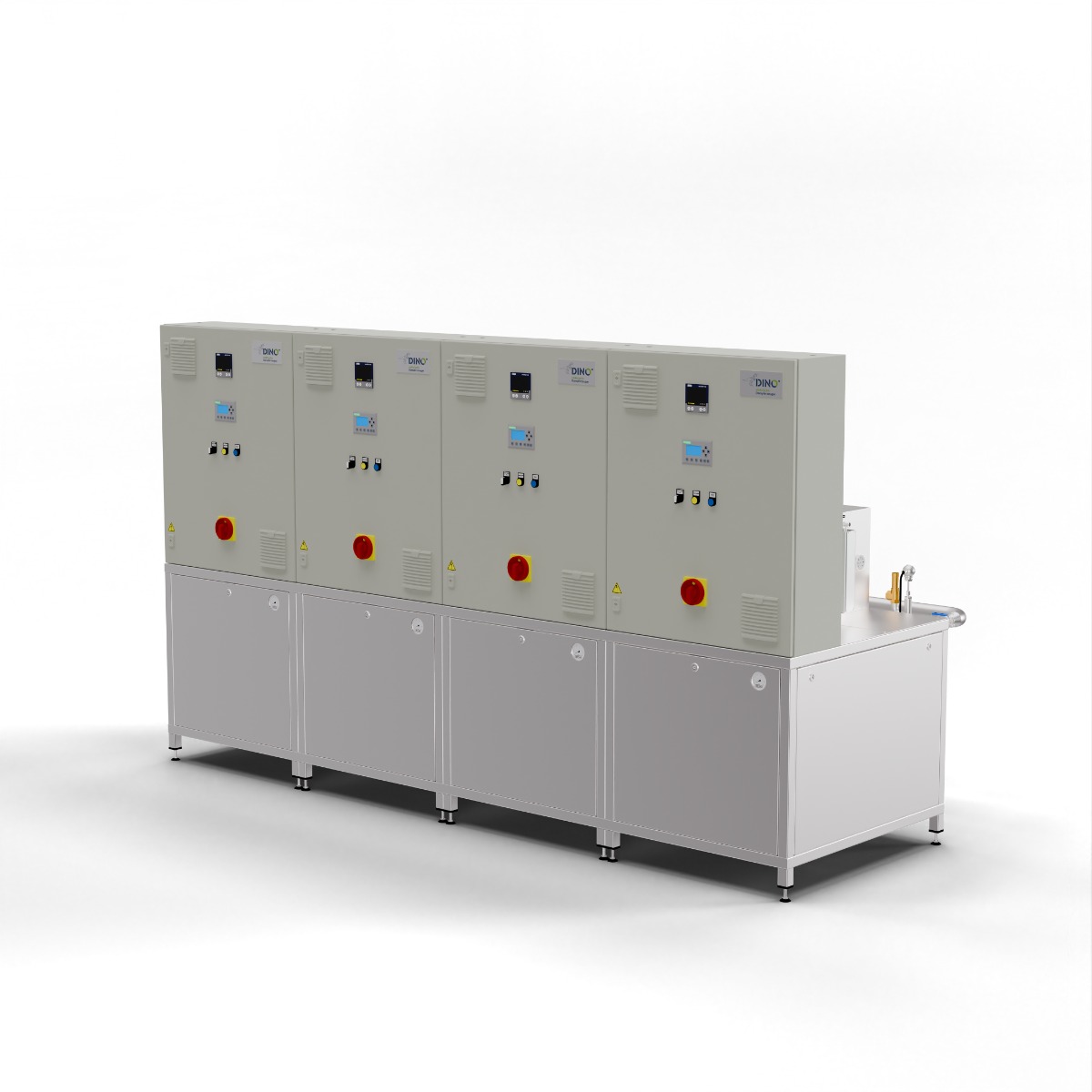

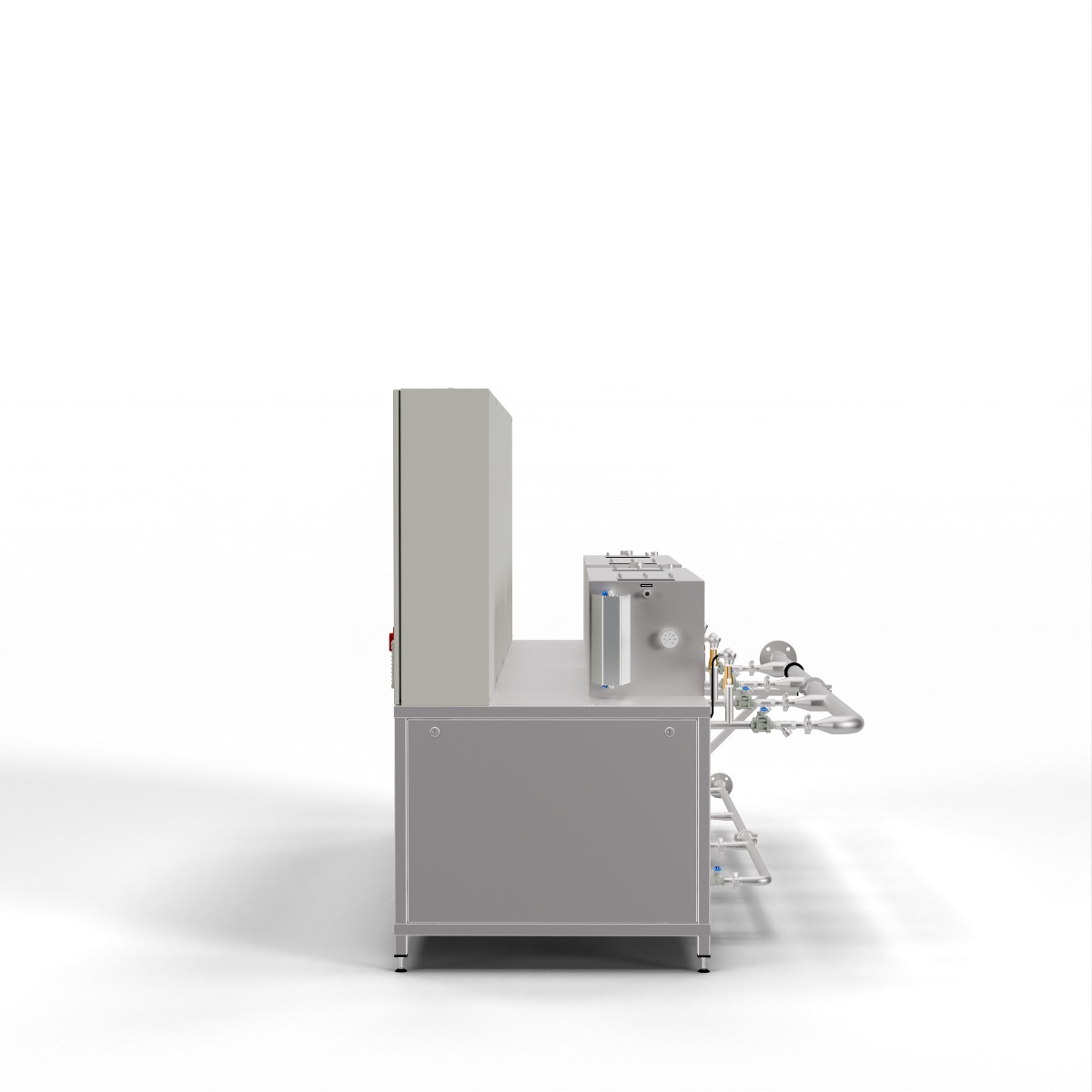

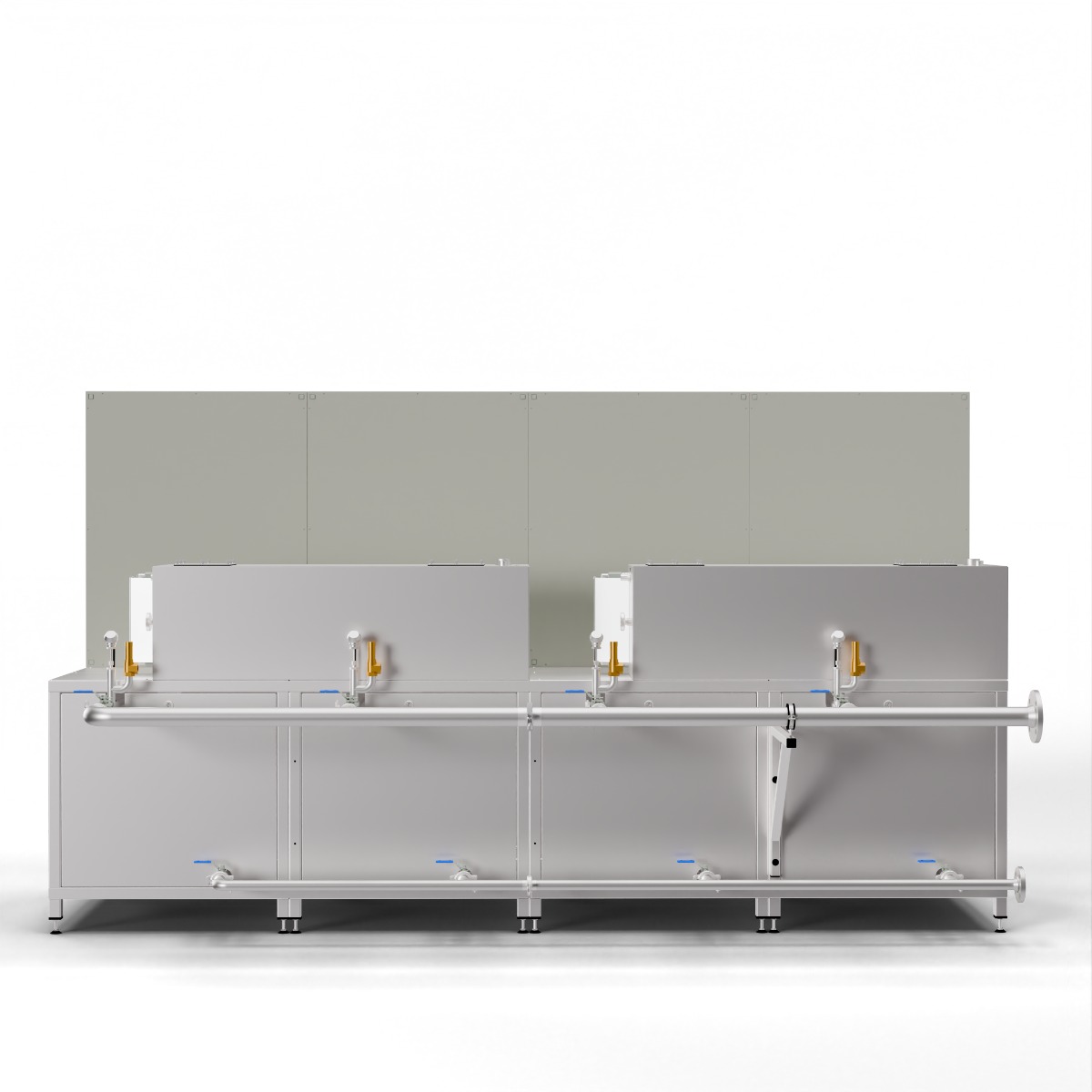

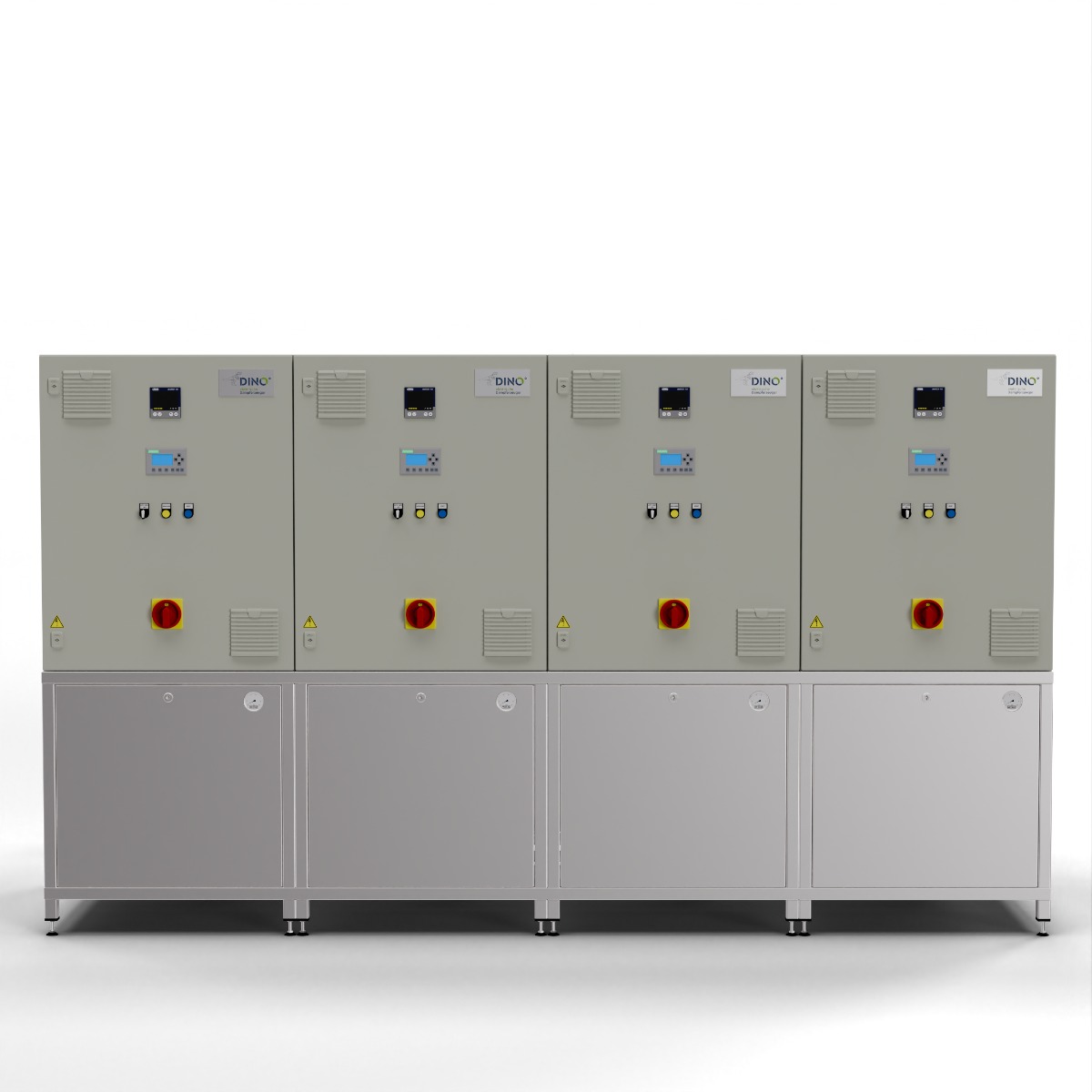

Steam Generator CD 63 Compact Quadro H - 10bar

SKU
CD63K-QU-H-10

More Information

Performance

Steam output336 kg/h.
Heat output223 kcal
Operating pressure1-10 bar
Max. operating pressure11.5 bar
Max. steam temperature184,0 °C
Number of heating elements4x 7x 9kW

Electrical dimensions

Operating voltage400 Volt
50 Hz
3+PE phases
Heating power4x 63 kW
Total connected load4x 64 kW
Rated current4x 92 A
Protection on site4x 100 A
Min. cross section4x 4x 35 mm²
Connector plug4x CEE 125A

Installation dimensions

Steam pipeDN32
Water intake2x ET R½“
Blowdown valveDN32
Safety valveDN32
Overflow / Tank drainage2x AG G¾“
Condensate inlet tank2x IT G¾"
Flash steam2x IG G1½"

Emissions

Noise63 db

Dimensions

Height1.860 mm
Width3.200 mm
Depth1.450 mm
Add to Compare
We supply our customers with efficient and powerful steam generators. In addition to providing the right performance, our aim is to customise the systems to best suit the needs of our customers and their respective industries. With the right equipment package, various degrees of steam purity such as process or pure steam can be generated. It goes without saying that we produce our steam boilers exclusively from stainless steel to ensure a long service life.
Upgrades

Electric steam generators
Made in Germany

  • Over 60 years of experience
  • Manufactured in Germany
  • International shipping

  • Global support
  • Short order times
  • Individual customisations (manufacturing based on customer requirements)

  • Maintenance and commissioning
  • Sale of new and used devices
  • Comprehensive consulting and project support
  • Extensive range of accessories
