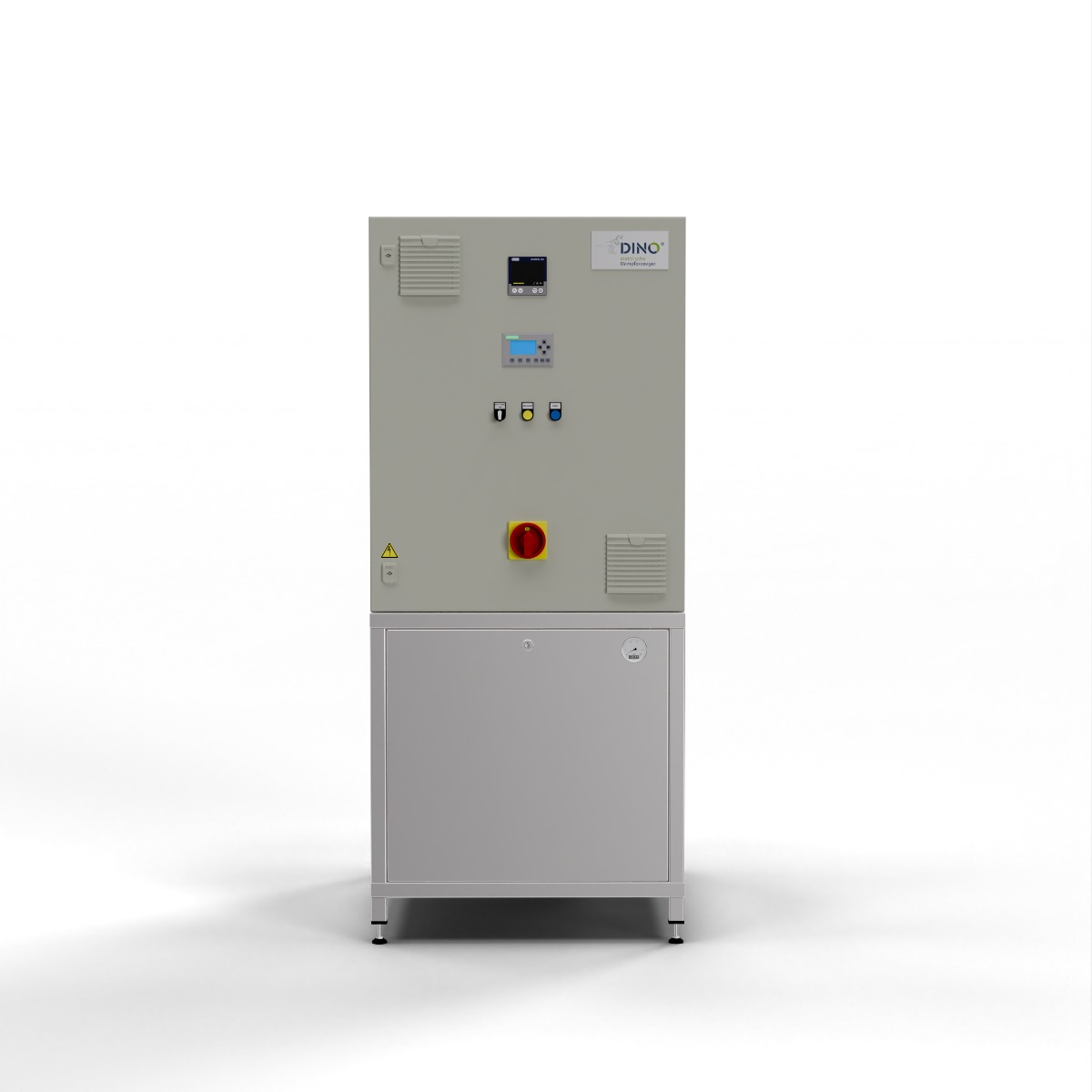

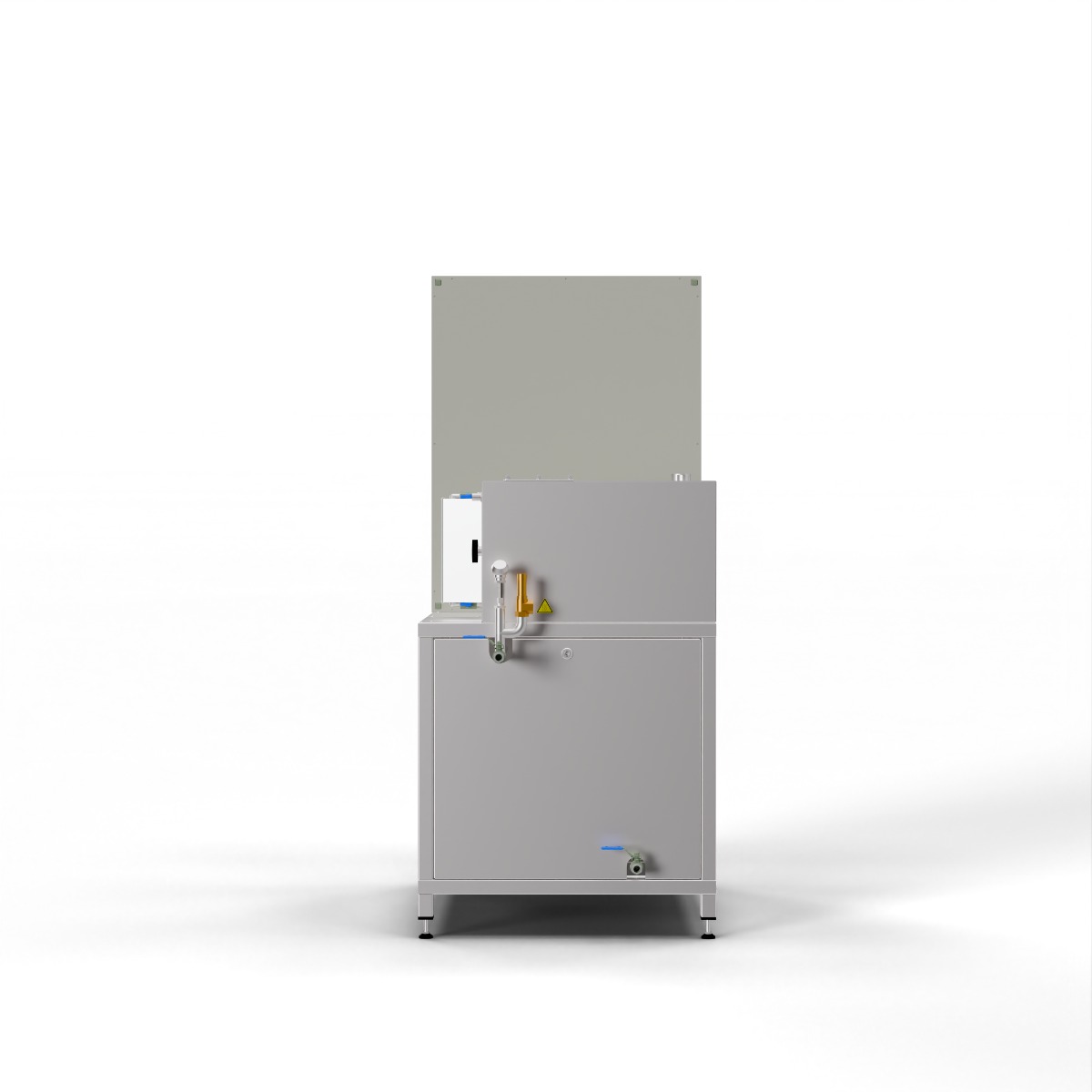

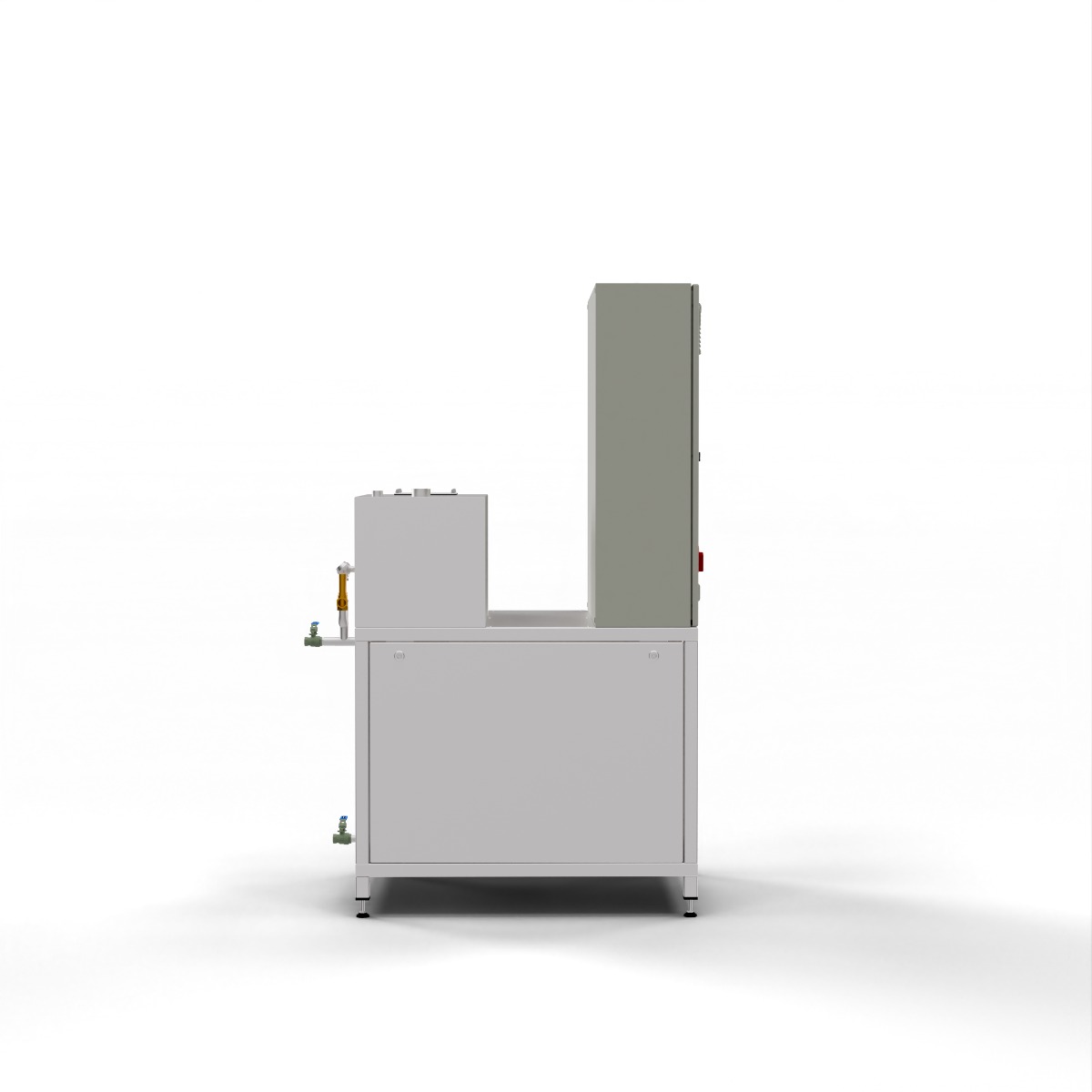

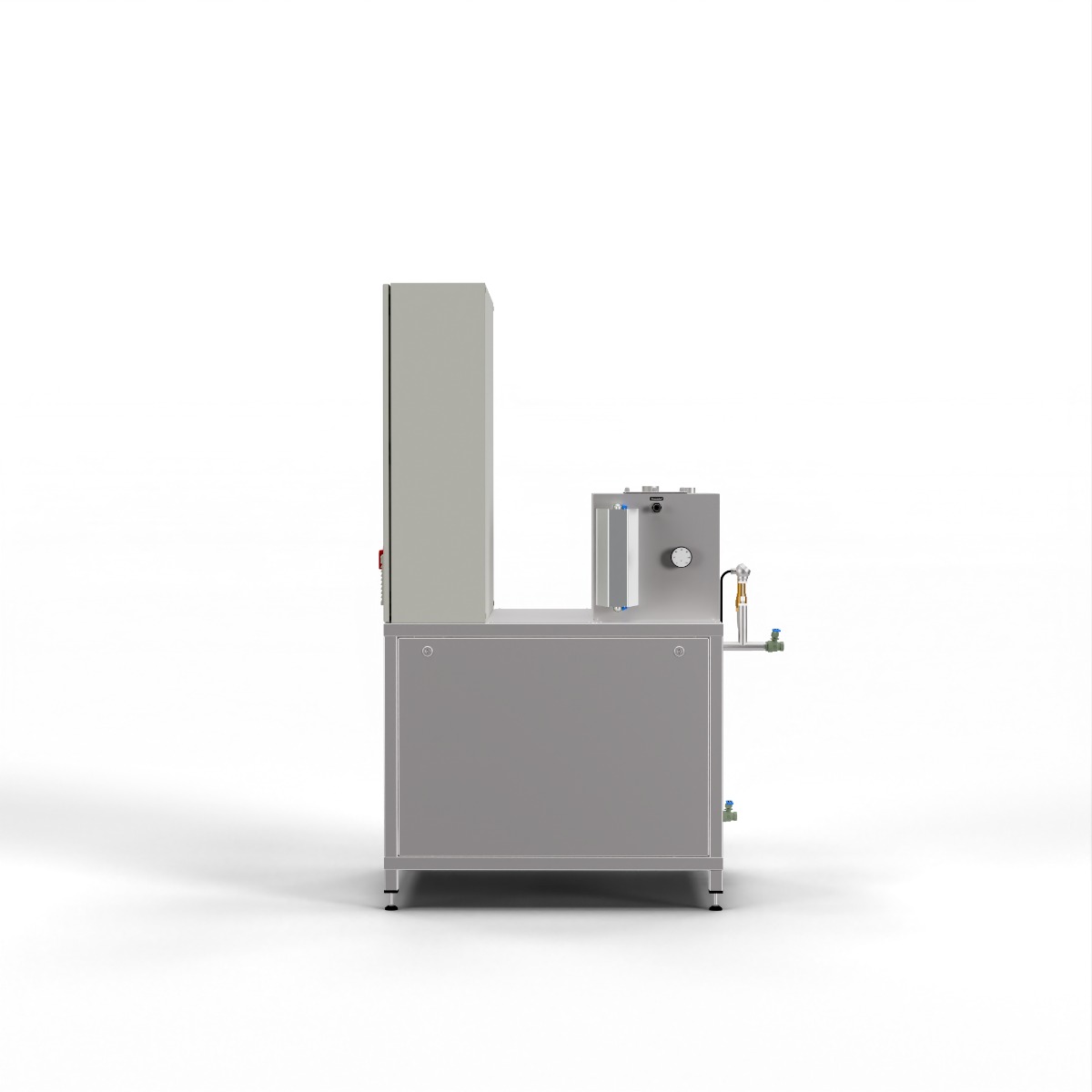

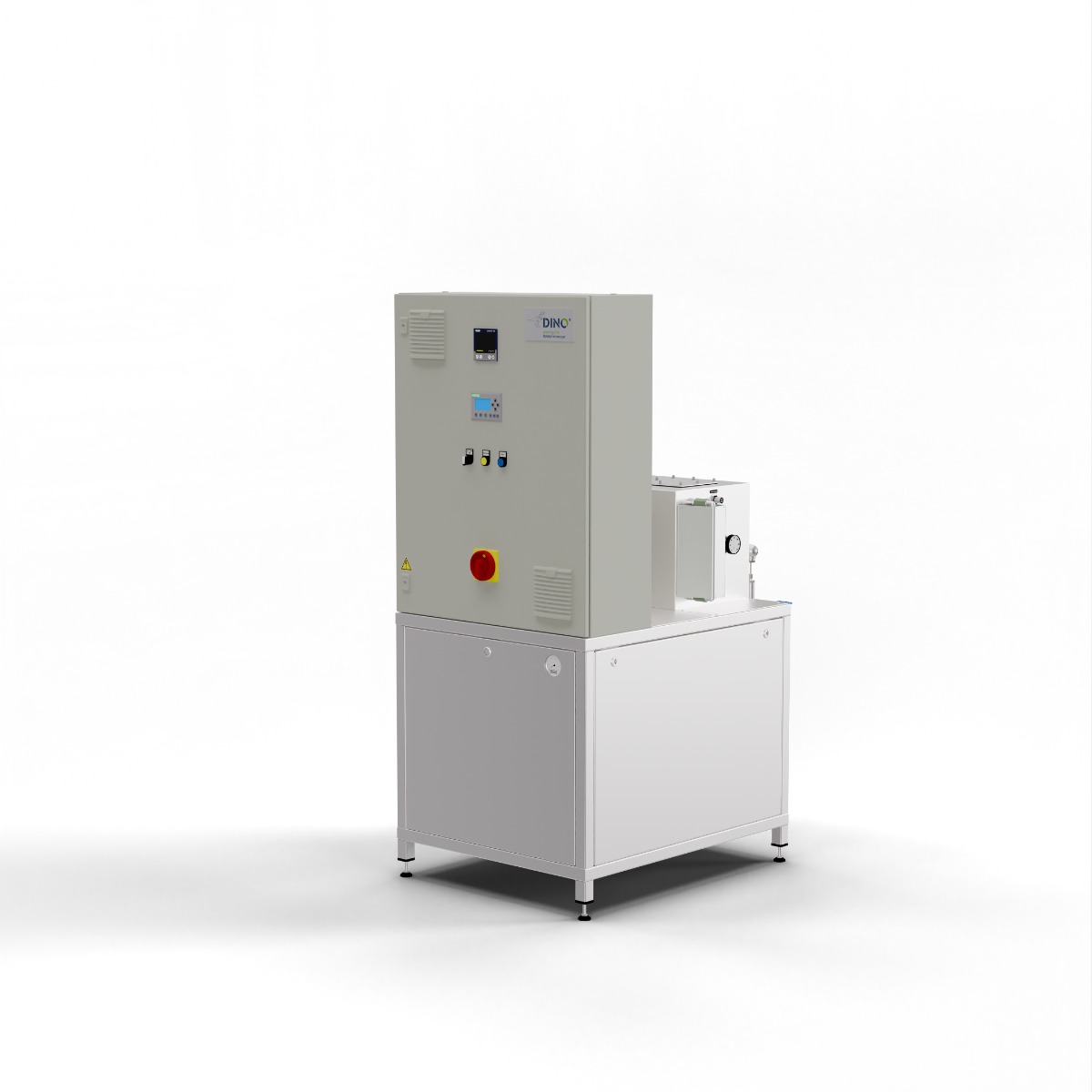

Steam Generator CD 22.5 Compact - 10bar
SKU
CD22,5K-E-10
Upgrades
We supply our customers with efficient and powerful steam generators. In addition to providing the right performance, our aim is to customise the systems to best suit the needs of our customers and their respective industries. With the right equipment package, various degrees of steam purity such as process or pure steam can be generated. It goes without saying that we produce our steam boilers exclusively from stainless steel to ensure a long service life.
Performance | |
Steam output | 30 kg/h. |
Operating pressure | 1-10 bar |
Max. operating pressure | 11.5 bar |
Max. steam temperature | 184,0 °C |
Number of heating elements | 2x 9kW / 1x 4,5kW |
Electrical dimensions | |
Operating voltage | 400 Volt |
50 Hz | |
3+PE phases | |
Heating power | 22,5 kW |
Total connected load | 23,5 kW |
Rated current | 34,0 A |
Protection on site | 50,0 A |
Min. cross section | 4x10 mm² |
Connector plug | CEE 63A |
Installation dimensions | |
Steam pipe | IT G½" |
Water intake | ET R½" |
Blowdown valve | ET R½" |
Safety valve | IT G¾" |
Overflow / Tank drainage | AG G¾" |
Condensate inlet tank | IT G¾" |
Flash steam | IG G1½" |
Emissions | |
Noise | 63 db |
Dimensions | |
Height | 1.860 mm |
Width | 800 mm |
Depth | 1.230 mm |
